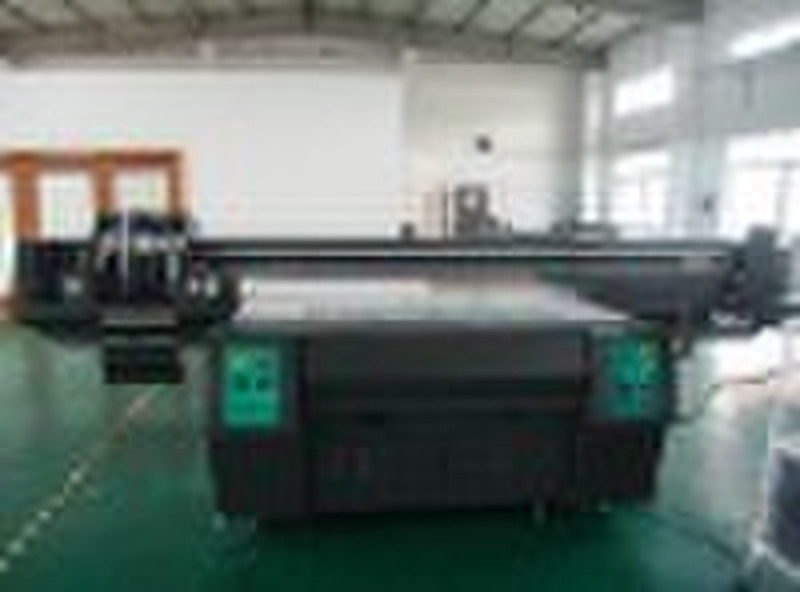

UV Vacuum + Flatbe Printer Machine

Manufactured By Shanghai Docan Technologies Co., LtdModel: UV2030Main Features: Effective printing table 2m x 3m Maximum print thickness 12cm Automatic height adjustment system Hardening aluminum table Body tempering process Max 16heads 512 print system Min 8heads 512 Printing System Automatic positioning, automatic lift UV lamp UK Primaic Adsorption vacuum table Double rail, screw Japan SMC vacuum system Panasonic Electric Motor Taiwan HIWIN Guide PHOTOPRINT 6.0 KUV control system Technical Specification General Info Model UV2030Print Technology Drop-on-demand Piezo Electric Printhead Type JAPAN KM-512-14PL / KM-512-42PL Printhead No. 4/5/6/7/8/10/12/15/16 pcs Printhead Controls Print head temperature & voltage are adjustable by software Printing Size 2.0m x 3.0m Ink Characteristics UV curing ink Ink Reservoir Refillable on the fly while printing/1000ml Loating Mode Resto/Servo RIP Software Photoprint 6.0 Drying System UV lamp File Format TIFF, JPEG, Postscript 3, EPS and PDF Resolution 360 dpi x 360 dpi 360 dpi x 720 dpi 720 dpi x 360 dpi 720 dpi x 720 dpi 720 dpi x 1440 dpi 1440 dpi x 1440 dpi Printing Speed In draft mode up than 28 sq.m ( 4 heads ) In standard mode up than 18 sq.m ( 4 heads ) In high resolution mode up than 11 sq.m ( 4 heads ) Ink Ink Type UV curing ink Ink Color 4 colors (C, M, Y, K) - 7colors (C, M, Y, K, LC, LM + W) Printing Assistant System Printing Materials (1-50mm thickness) Glass, ceramic tile, ceiling, aluminum sheets, wooden sheets, billboards, acryl sheets, KD board, Plexiglas, foam board & flexible media like wall paper, glistening film, canvas, carpet, leather, paper sheets, etc. Heating System Standard (Front heater, Rear heater, Fan) Color Retains Outdoor 2 years, indoor 7 years Color Management ICC based color, adjustment curves, density adjustment Printer Info Power Supply AC220V 50/60HZ (10%) 16A Working Conditions Temperature 20-28 degrees, Humidity 40% - 60% Dimensions 3.75*2.16*1.33m Weight 1450kgs Packing Outside packing : Packed by solid wooden carton Inner packing: sealed with anti-rain & rust plastic bubble film
